GEA launches new filling technology for ESL beverages

By Jim Cornall

- Last updated on GMT

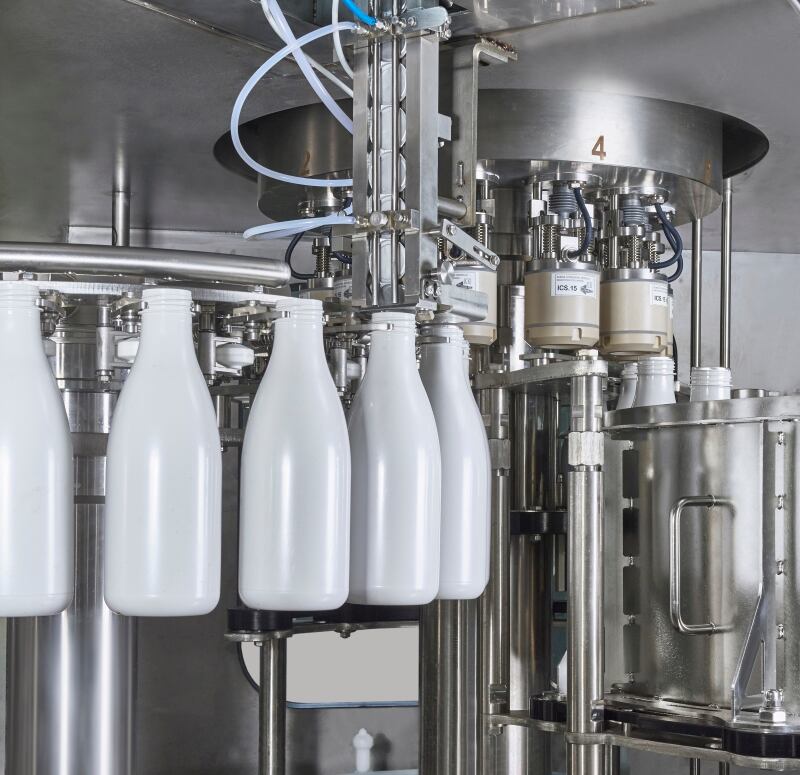

The new GEA Whitebloc Filling System Aero. Pic: GEA
The new GEA Whitebloc Filling System Aero. Pic: GEA

Related tags Gea Milk Shelf life

GEA has recently launched its new Whitebloc Filling System Aero, which has been specially designed to be used for bottling extended shelf life (ESL) beverages.

GEA is a global supplier of complete filling lines that handle the entire process from raw material reception to final bottling and palletization.

During recent years, a key trend in the market for dairy products has resulted in the demand and consequent development of a wide range of dairy beverages with a prolonged shelf life compared to fresh products, with an increasing request in both developed and emerging markets.

The new Whitebloc Aero uses proven technology that has been optimized to meet the specific needs of producers of ESL beverages, which often focus on small batch production, to give them the edge in a competitive marketplace. These include simplicity, efficiency, reliability, practicality, sustainability, flexibility and the lowest possible total cost of ownership (TCO).

Milk-based ESL beverages need special requirements to preserve their shelf-life and organoleptic properties. As such, container decontamination is an essential part of the process to ensure an effective and reliable extended shelf-life in cold chain distribution.

Pic: GEA

The GEA Whitebloc Aero’s design is optimized for the treatment time required in ESL applications; this allows bottle decontamination with dry H2O2 and subsequent activation with warm air to be performed on a single carousel, which keeps the layout as compact as possible.

The decontamination, filling and capping processes are performed in a hygienic cabin with a top-down laminar flow of sterile air with a slight overpressure to maintain a clean and protected environment.

The ESL market frequently requires producers to run small batches and fill a variety of products on the same machine. The GEA Whitebloc Aero offers the typical production rate of fresh and ESL applications, using both PET and HDPE containers with plastic caps or aluminum foil closures and using neck or base handling. The machine can be supplied in a standalone configuration or, for PET bottles, combined with a stretch blow molding machine.

The GEA Whitebloc Aero can achieve a wide range of decontamination targets depending on the required level of product sensitivity and shelf-life for both high and low-acid products. Equipment cleaning is fast, cost-effective and flexible thanks to the possibility of choosing between the integration of customers’ existing fluid cleaning system or a dedicated cleaning process skid unit embedded with the GEA Whitebloc Aero.

A built-in product recovery system eliminates product waste during the start-up cycle, at the end of production and during changeovers. Filling valves can be equipped with a load cell (weight filling) or flow meter (volumetric filling) to meet the various requirements of the liquid dairy product market.

No water is used in the process. Both bottles and closures are treated using the same chemical for convenience and consistency.

As part of the newly-launched Aero platform, GEA has also developed a dedicated filling system specifically for fresh beverages: the Aerobloc Fresh. This is a hygienic filling platform for milk and liquid dairy products with a short shelf-life, without requiring any container decontamination. Its modular design allows the option of adding a synchronized stretch blow molding machine or an air rinser and/or a neck trimmer to meet the specific requirements of the product and container material.
