New GEA nitrogen freeze drying pilot plant allows for testing before investing

By Jim Cornall contact

- Last updated on GMT

GEA liquid nitrogen freezer pilot equipment. Pic: GEA
GEA liquid nitrogen freezer pilot equipment. Pic: GEA

Related tags: Gea, Nitrogen, Fermentation, Probiotic

GEA has launched its new nitrogen freezing pilot plant for bacteria, giving dairy processors the opportunity to trial the new technology in their own plants before investing in production-scale equipment.

By freezing bacteria into pellets before drying, GEA said it can provide processors with greater flexibility, a higher active cell count and reduced costs through better utilization of their fermentation lines and freeze dryers.

Many dairy processors, as well as suppliers of probiotic products, use live bacteria as part of their production process (e.g., yogurt or cheese). Traditionally, they have kept their own strains of bacteria and transferred them from one batch to the next. However, as more specialized strains of bacteria have emerged, so too the need to distribute them more widely.

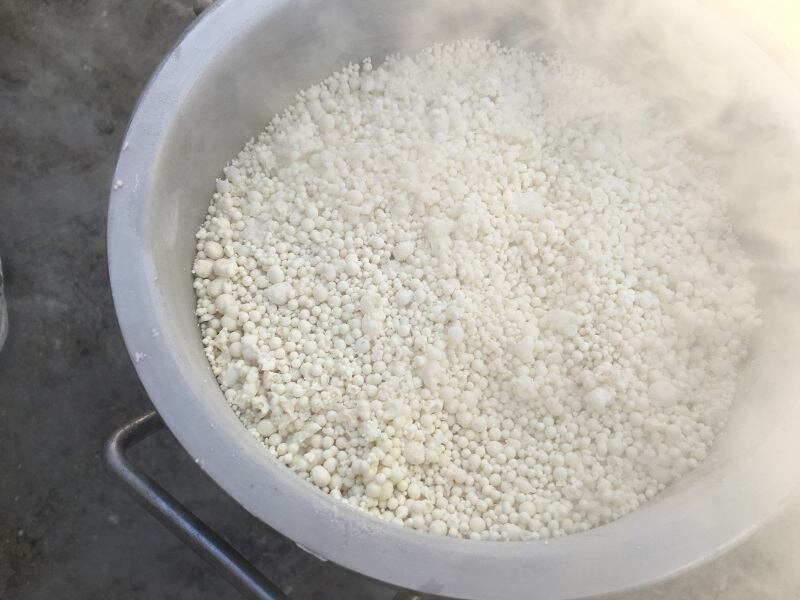

GEA Freeze-dried bacteria using nitrogen
Freeze-dried bacteria using nitrogen freezing from GEA. Pic: GEA

This is typically done by freezing them to -50 Celsius and storing them under temperature-controlled conditions until they are required. This, however, requires a continuous cold chain, which may be no problem in developed countries, but more challenging elsewhere, GEA said.

For this reason, freeze-dried bacteria have become popular because they can be transported and stored at ambient temperature and rehydrated. Freeze-drying bacteria is a long process requiring several hours to freeze, then an additional 48 to 72 hours for the lyophilization process to be completed, which GEA said ties up expensive freeze-drying equipment and limits production.

With its new pilot plant, GEA has taken a different approach, freezing the bacteria in droplets using a liquid nitrogen bath outside the freeze dryer then drying the pellets via the normal procedure. This method has many significant advantages.

For example, rather than freezing the bacteria in a single batch, they can be collected from a continuous stream improving flexibility and equipment utilization; fermentation and freeze drying are separate so the freeze dryer does not need to be available when the product is frozen. Also, bacteria can be stored at -50 C until required; the bacteria cell count resulting from this process is nearly double that of traditional freeze drying techniques; and frozen pellets dry much quicker than bacteria in slab form, therefore the lyophilization process is also faster, typically 24 to 36 hours compared to up to 72 hours.

Morten Pedersen, area sales manager for GEA Process Engineering, said, “Although there is a cost for the liquid nitrogen, this is more than offset by the optimized utilization of the freeze dryer. Freeze dryers are expensive so we need to make sure customers are getting the best possible output from them.”

Regarding the higher cell count from this technique, Pedersen said, “Bacteria frozen quickly via liquid nitrogen and dried in this way, retain twice as many viable cells than other techniques. This product is more effective than other options and ultimately, reduces the customer’s costs.”

Pefersen said the new pilot plant has a simple design, is easy to use and can be cleaned in place.

“We are absolutely committed to this technology and want our customers to have the opportunity of trying it out for themselves in their own factories.

“The results already seen with this new pilot plant are impressive and we’re confident that our customers will also be delighted with the results.”
